shenchi123Dual Channels Building Site Turnstile Full Height Security Turnstiles CE
Dual Channels Building Site Turnstile
Dual Channels Full Height Security Turnstiles
CE Building Site Turnstile
Place of Origin:
shenzhen
Brand Name:
cxt
Certification:
Single label product appearance patent
Model Number:
CXT-Z1702A-90
Chat Now
Product Details
Width:
600mm
Product Name:
Factory Price Automatic Safe Rotation Full Height Turnstile Gate,DaoSafe RFID Full Height Turnstile Price,Full Height Turnstile,China High Quality Pedestrian Security Full Height Turnstile,Stainless Steel Single Passage Full Height Turnstile
Power Supply:
AC220V/110V,50/60Hz,220V,AC110-220V,50Hz
Net Weight:
260kg,15kg,600kg,200kgs
Dimension:
1630 * 1337 * 2240mm,1500*1500*2300 (mm),2100*1500*2310mm,2210mm*1350mm*2300mm,1520(L)*1480(W)*2250(H)(mm)Single Channel
Certification:
ISO,CE,RoHS
Highlight:
Dual Channels Building Site Turnstile
,
Dual Channels Full Height Security Turnstiles
,
CE Building Site Turnstile
Payment & Shipping Terms
Minimum Order Quantity
1
Price
90~3500USD
Packaging Details
Cartons and wooden boxes
Delivery Time
20 working days
Payment Terms
Public Account
Supply Ability
500ps
RELATED PRODUCTS
Face Recognition Full Body Turnstile Brushless Motor 40W 100W
Get Best Price
25-30 Person/Min Baffle Gate Turnstile Anti Collision Stainless Steel
Get Best Price
Dual Channels Building Site Turnstile Full Height Security Turnstiles CE
Get Best Price
Intelligent Qr Code Full Height Turnstile Customized High Performance
Get Best Price
CONTACT US
Chat Now
Product Description

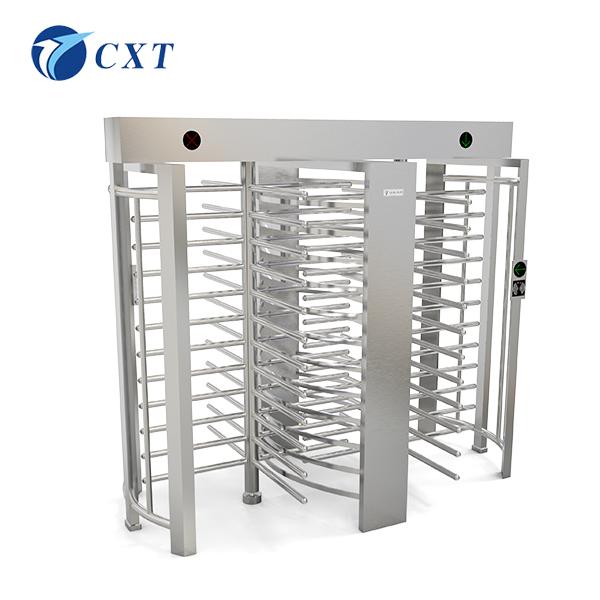

Brushless motor intelligent recognition punch card Full Height Turnstile CXT-Z1702A-90
| Model | CXT-Z1702A-90 |

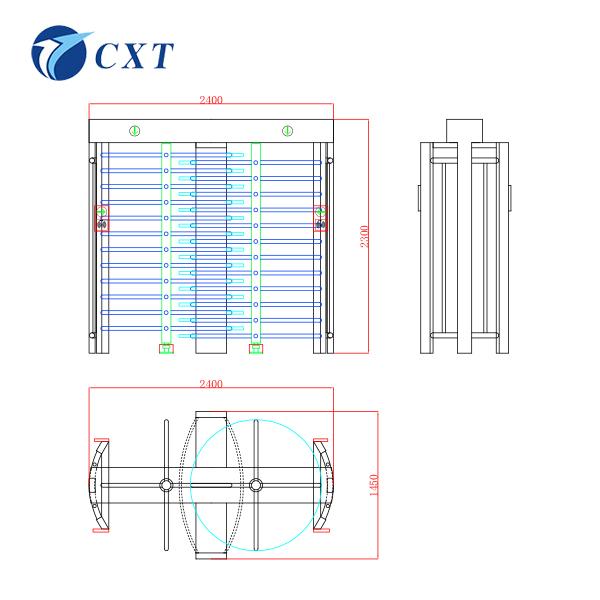

| Specification | 2400*1450*2300mm |
| Rod length | 570mm |
| Process | Bending, cutting, welding, polishing, grinding and other processes |
| Material | National standard 304 stainless steel (201 stainless steel, iron paint can be customized) |
Full-height turnstile – 90-degree full-height turnstile with dual channels
The Chuangxintong full-height turnstile has fault self-checking and alarm prompting functions, which is convenient for users to maintain and use;
The interface can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;
The turnstile has an automatic reset function. When the gate bar is unlocked, it rotates 120 degrees/90 degrees, which means it is automatically reset (locked). Or if there is no passage within the specified time, the system will automatically cancel the user’s permission to pass through the turnstile arm and automatically close (lock), and the delay is adjustable at 2S, 5S, 10S, and 60S.
Anti-collision function, when no gate opening signal is received, the fence bar is automatically locked;
Anti-tailgating function, when one person passes, it turns 120 degrees/90 degrees and automatically locks;
Power-off automatic normally open function to meet the requirements of fire management;
Can be connected with a variety of card reading devices to receive relay switch signals;
One-way and two-way passage functions, can control the entry and exit of personnel in one direction or two directions;
Adopting the optical working principle, there is no delay requirement for the input control signal, and absolutely avoids the phenomenon of swiping a card to pass through several people;
External buttons can realize left and right normally open functions;
External buttons can realize non-power-off normally open functions;
Remote control and management can be realized directly through the management computer (customization is required);
The control panel can be connected to the counting function to record the number of people present, and realize the forward addition and reverse subtraction functions (customization is required).
Face recognition turnstile,Card swipe turnstile,QR code turnstile,Application of turnstile,Turntile manufacturer,Turntile system solution,Repair of turnstile,Maintenance of turnstile,Installation of turnstile,Turntile case,Turntile picture,Is turnstile expensive?,How much does a turnstile cost?, Turntile agent,Fingerprint turnstile,Turntile access control system,Office turnstile,Turntile parameters,School turnstile,Precautions for using turnstile,Turntile brand,Turntile manufacturer,
Turntile manufacturer,Turntile ticket inspection system,Turntile channel,Community turnstile,
Working principle of turnstile,Scenic area turnstile,Station turnstile,Airport turnstile, Single-movement turnstile,Dual-movement turnstile,Outdoor turnstile,Indoor turnstile, Anti-collision turnstile,Waterproof turnstile,Pedestrian passage turnstile,Innovation turnstile, Brushless turnstile,Anti-collision turnstile,Fully automatic turnstile,Factory turnstile,
The turnstile is mainly divided into full-height turnstile, half-height turnstile, and then there are one-way turnstile, 90° turnstile, 120° turnstile, etc. Characteristics of turnstiles Turntiles are suitable for strictly controlled areas and can effectively prevent climbing and drilling. Mainly used in special places: prisons, railway stations, stations,
Full-height turnstiles are suitable for strictly controlled areas, which can effectively prevent climbing and drilling. When people pass through the turnstiles, the turnstiles controlled by management authority can refuse entry to people without authority. If the authority allows passage, the turnstiles will automatically release.
Full-height turnstiles are currently mainly used in places including: prisons, military management areas, banks, etc., and factories with very strict entry and exit management (such as chemical plants, construction sites, etc.). The mechanical part of the equipment contains an emergency control device. When the power is off, the center arm can rotate freely to ensure smooth passage; it meets fire protection requirements and automatically locks when the power is on. It can be applied to all building environments and can solve all control problems of pedestrian entrances and exits. It can control whether the gate is locked or unlocked at any time, with up to 20 signal interfaces, which is convenient for users to expand functions.
