shenchi123Fully Automatic High Security Turnstile Full Height Gate 32w
Fully Automatic High Security Turnstile
32w High Security Turnstile
32w Full Height Gate
Place of Origin:
shenzhen
Brand Name:
cxt
Certification:
Single label product appearance patent
Chat Now
Product Details
Power Supply:
AC220V/110V,50/60Hz,220V,AC110-220V,50Hz
Arm Length:
≤7000mm,600mm(optional),600(mm),600mm~900mm
Power Consumption:
40W,100W,32w
Color:
Optional,Silver,SSB(US32D)- Stainless Steel Brushed / Powder Coating,Silver White Or Customize
Communication Interface:
RS485(Distance,TCP Distance ≤1200m .,Relay/RS485
Certification:
ISO,CE,RoHS
Highlight:
Fully Automatic High Security Turnstile
,
32w High Security Turnstile
,
32w Full Height Gate
Payment & Shipping Terms
Minimum Order Quantity
1
Price
90~3500USD
Packaging Details
Cartons and wooden boxes
Delivery Time
20 working days
Payment Terms
Public Account
Supply Ability
500ps
RELATED PRODUCTS
Face Recognition Full Body Turnstile Brushless Motor 40W 100W
Get Best Price
25-30 Person/Min Baffle Gate Turnstile Anti Collision Stainless Steel
Get Best Price
Dual Channels Building Site Turnstile Full Height Security Turnstiles CE
Get Best Price
Intelligent Qr Code Full Height Turnstile Customized High Performance
Get Best Price
CONTACT US
Chat Now
Product Description

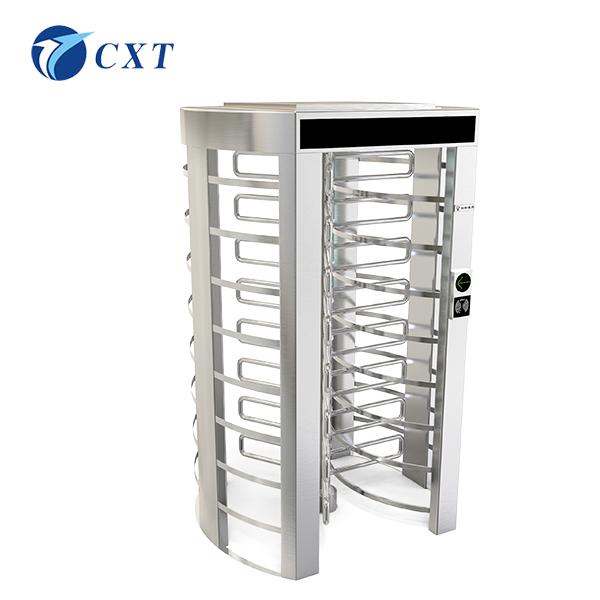

Fully automatic brushless motor compatible with smartphone app Full Height Turnstile CXT-Z170D-120
| Model: CXT-Z170D-120 | CXT-Z170D-120 |
| Specifications: | |
| Pole length | 570mm |
| Process | Produced by bending, cutting, welding, polishing, grinding and other processes |
| Material | National standard 304 stainless steel (201 stainless steel, iron paint can be customized) |
CXT-Z170D-120 Innovation Pass single door 120 degree full height revolving gate
features:
1) It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use;
2) It can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;
3) It has an automatic reset function. When the gate lever is unlocked, it rotates 120 degrees/90 degrees, which means it is automatically reset (locked). Or if the user does not pass within the specified time, the system will automatically cancel the user’s right to pass and automatically close (lock), and the delay is adjustable at 2S, 5S, 10S, and 60S.
4) Anti-collision function: the fence bar will automatically lock when no gate opening signal is received;
5) Anti-tailgating function: when one person passes by, the fence bar will turn 120 degrees/90 degrees and automatically lock;
6) Automatic normally open function when power is off to meet the requirements of fire management;
7) It can be connected with a variety of card reading devices to receive relay switch signals;
8) One-way and two-way passage function: it can control the entry and exit of personnel in one direction or two directions;
9) It adopts the optical working principle, and there is no delay requirement for the input control signal, which absolutely avoids the phenomenon of swiping a card to pass several people;
10) The external button can realize the left and right normally open function;
11) The external button can realize the non-power-off normally open function;
12) It can realize remote control and management directly through the management computer (need to be customized);
13) The control panel can be connected to the counting function to record the number of people present and realize the forward addition and reverse subtraction functions (need to be customized).
