Supermarket Waist Height Turnstile Automatic 304 Stainless Steel

Supermarket Waist Height Turnstile Automatic 304 Stainless Steel

Supermarket Waist Height Turnstile

Supermarket Waist Height Turnstile

Automatic Pedestrian Barrier Gate

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Chat Now

Supermarket Waist Height Turnstile Automatic 304 Stainless Steel
Supermarket Waist Height Turnstile Automatic 304 Stainless Steel
Supermarket Waist Height Turnstile Automatic 304 Stainless Steel
Supermarket Waist Height Turnstile Automatic 304 Stainless Steel
Supermarket Waist Height Turnstile Automatic 304 Stainless Steel

Product Details

Power Consumption:

40W,100W,32w

Color:

Optional,Silver,SSB(US32D)- Stainless Steel Brushed / Powder Coating,Silver White Or Customize

Pass Width:

≤650mm

Housing Material:

304 Stainless Steel

Name:

Full Height Sliding Pedestrian Barrier Gate Turnstile,Full Height Turnstile,Full Height Turnstile Double Lane Access Gate Rfid Entrance Door

Communication Interface:

RS485(Distance,TCP Distance ≤1200m .,Relay/RS485

Highlight:

Supermarket Waist Height Turnstile

Supermarket Waist Height Turnstile

Automatic Pedestrian Barrier Gate

Payment & Shipping Terms

Minimum Order Quantity

1

Price

90~3500USD

Packaging Details

Cartons and wooden boxes

Delivery Time

20 working days

Payment Terms

Public Account

Supply Ability

500ps

RELATED PRODUCTS

Video

Face Recognition Full Body Turnstile Brushless Motor 40W 100W

Get Best Price

Video

25-30 Person/Min Baffle Gate Turnstile Anti Collision Stainless Steel

Get Best Price

Video

Dual Channels Building Site Turnstile Full Height Security Turnstiles CE

Get Best Price

Video

Intelligent Qr Code Full Height Turnstile Customized High Performance

Get Best Price

CONTACT US

Chat Now

Product Description

Brushless motor waist high supermarket Full Height Turnstile CXT-ZT85-A

ModelCXT-ZT85-A

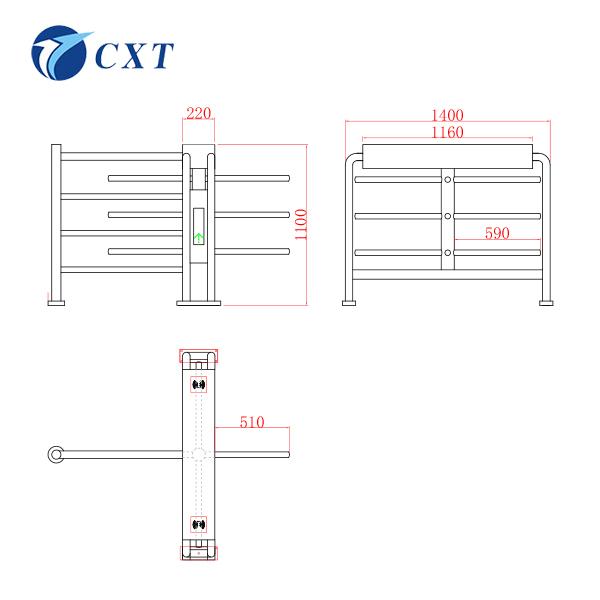

Specifications1480*280*1100mm
Pole length570mm
ProcessProduced by bending, cutting, welding, polishing, grinding and other processes
MaterialNational standard 304 stainless steel (201 stainless steel, iron paint can be customized)

Half-height turnstile-half-height guardrail turnstile

Supermarket Waist Height Turnstile Automatic 304 Stainless Steel 0

Supermarket Waist Height Turnstile Automatic 304 Stainless Steel 1
Functional features of half-height turnstile:

1) It has fault self-checking and alarm prompting functions, which is convenient for users to maintain and use;
2) It has the function of automatic opening when power is off, self-checking when incoming calls and automatically restoring to the locked state
3) There are multiple working modes to choose from, that is, two-way card reading, card reading on one side and prohibition of the other direction, card reading on one side and free passage in the other direction, and the gate machine working mode can be set through the main board menu.
4) When the pedestrian reads the valid card to pass, the infrared detects that the pedestrian has passed and the gate is automatically closed or the gate is delayed after the pedestrian passes. The delay of 1-60 seconds can be set by the main board menu.
5) It has an automatic reset function. When the valid card is read, if the passerby does not pass within the specified time, the system will automatically cancel the passerby’s access privileges, and the restricted access time can be set by the management personnel.
6) It has 485 remote control of gate opening and closing functions to meet the special needs of users and fire safety requirements.
7) Anti-collision function: when no gate opening signal is received, the swing arm automatically locks;
8) Mechanical anti-pinch function: when encountering resistance during the swing arm resetting process, it automatically rebounds or the motor automatically stops working within the specified time, and the force is very small, and an alarm signal is issued at the same time;
9) It has a unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration, and can be remotely controlled and managed through the management computer.
10) The number of people passing in the direction of passage can be automatically counted and presented to the manager in an intuitive LED (optional) way, so that the manager can know the number of people passing in a certain direction.
11) It has a clear direction of passage indication function, and uses intuitive LED passers-by to indicate whether passage is allowed or prohibited.
12) It has a card reader with memory and without memory function, and the user can set it through the motherboard keyboard according to their needs.
13) Through software settings, the total number of people inside the venue can be limited to meet the special needs of some special occasions.
14) The whole system runs smoothly and with low noise;

Product Features
Environment: Indoor/Outdoor
Product Level: High/Medium
Back-to-Back Protection: High
Pinch Protection Level: High
Collision Protection: High
Passenger Groups: Pedestrians

Face recognition turnstile,Card swipe turnstile,QR code turnstile,Application of turnstile,Turntile manufacturer,Turntile system solution,Repair of turnstile,Maintenance of turnstile,Installation of turnstile,Turntile case,Turntile picture,Is turnstile expensive?,How much does a turnstile cost?Turntile agent,Fingerprint turnstile,Turntile access control system,Office turnstile,Turntile parameters,School turnstile,Precautions for using turnstile,Turntile brand,Turntile manufacturer,

Turntile manufacturer,Turntile ticket inspection system,Turntile channel,Community turnstile,

Working principle of turnstile,Scenic area turnstile,Station turnstile,Airport turnstileSingle-movement turnstile,Dual-movement turnstile,Outdoor turnstile,Indoor turnstileAnti-collision turnstile,Waterproof turnstile,Pedestrian passage turnstile,Innovation turnstileBrushless turnstile,Anti-collision turnstile,Fully automatic turnstile,Factory turnstile,


Comparison parametersinnovative turnstilemarket turnstile
Operation modeelectricpush
Positioning principle1/500 decodingoptocoupler fixed point
Locking modeclutch devicepositioning arm
Transmission modemotorsolenoid valve, (external force push)
Reset modeautomatic rotation (finding zero position)manual (no prompt)
Buffering and anti-collisionyesno
Anti-reversal, yes, noyesno
Operation noisenohigh
Mechanical wear, no, highnohigh
Illegal alarmyesno
Service life5-10 years1-2 years
Smoothnessstrongpoor
Transmission memoryyesno
Passing promptyesno
Feedback signal outputyesno
Supermarket Waist Height Turnstile Automatic 304 Stainless Steel 2
