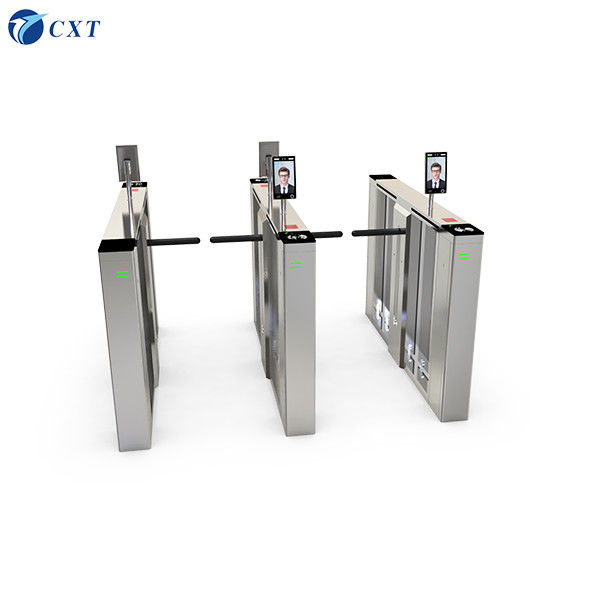

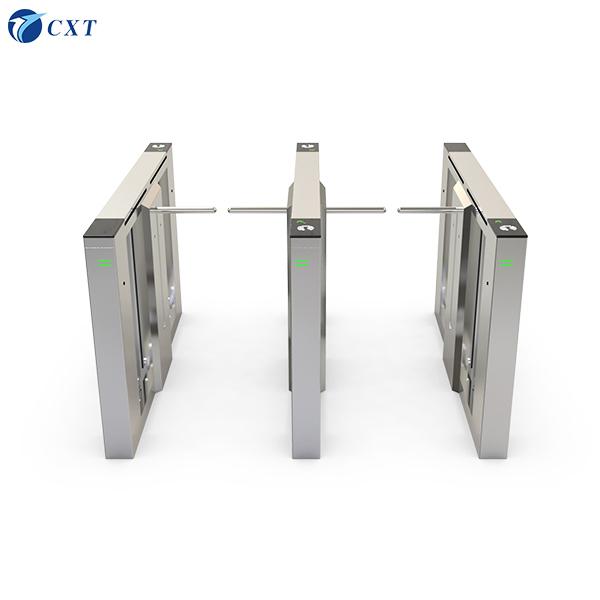

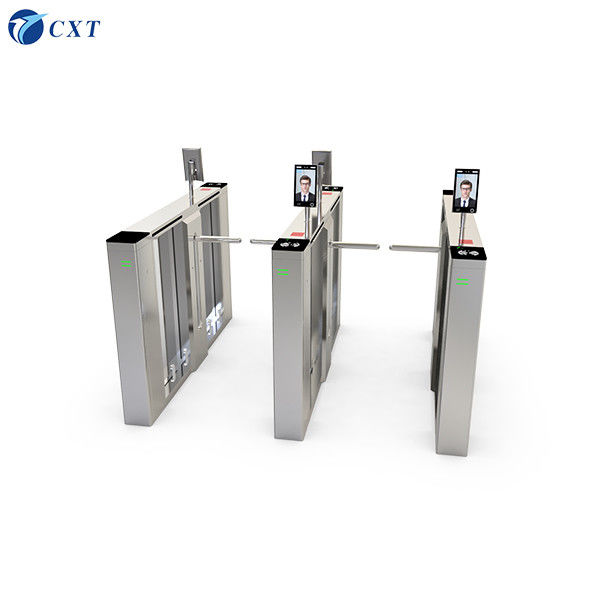

Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles

Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles

Brushless Motor Drop Arm Security Gates

Outdoor Drop Arm Security Gates

Outdoor Stainless Steel Turnstiles

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

indoor or outdoor (with rainproof rack)

Chat Now

Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles
Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles
Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles
Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles
Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles
Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles

Product Details

Access Control:

RFID,fingerprint,barcode,esd,token

Head Thickness:

1.5mm (can Be Customized)

Material:

Stainless Steels 304

Working Environment:

Indoor Or Outdoor (with Rainproof Rack)

Processing Technology:

Bending, Cutting, Welding, Polishing, Grinding And Other Processes

Channel Net Width:

650-900mm

Highlight:

Brushless Motor Drop Arm Security Gates

Outdoor Drop Arm Security Gates

Outdoor Stainless Steel Turnstiles

Payment & Shipping Terms

Minimum Order Quantity

1

Price

90~3500USD

Packaging Details

Cartons and wooden boxes

Delivery Time

20 working days

Payment Terms

Public Account

Supply Ability

500ps

RELATED PRODUCTS

Video

201 Stainless Steel Intelligent Security Entrance Systems Drop Arm Gate

Get Best Price

Good price Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles online

Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles

Get Best Price

CONTACT US

Chat Now

Product Description

Brushless motor fully automatic ticket checking station office building Drop Arm Turnstile CXT-YZ1600

ModelCXT-YZ1600
Specifications1200(MM)*200(MM)*1000(MM)
Pole length500mm
ProcessProduced by bending, cutting, welding, polishing, grinding and other processes
MaterialNational standard 304 stainless steel (201 stainless steel, iron paint can be customized)

Chuangxintong Slot Gate CXT-YZ1600
I. Product Overview:
Chuangxintong Slot Gate is a high-tech patented channel product with “slotted pole rising and falling two blocks to control passage”. The product adopts a new ARM control system and advanced brushless motor industrial control circuit and unique DFC technology, plus the unique transmission technology of brushless motor and accurate limit technology, which makes the product revolutionary in terms of performance, life, speed, noise, stability, etc.

2. Functional description
l It has fault self-check and logic judgment functions, which is convenient for user maintenance and function debugging;
l It can flexibly set various performances, up to dozens of types, and is easy to expand;
l The triple anti-pinch function of mechanical, infrared, and resistance rebound makes the operation safer;
l Multiple mode alarm functions, including illegal intrusion, anti-intrusion, tailgating, and passage timeout alarms;
l Anti-collision function, when no gate opening signal is received, the barrier arm is automatically locked;
l Reverse intrusion closing alarm function, when someone enters from the reverse direction after swiping the card in the forward direction, the barrier wing will close quickly and issue an alarm at the same time;
l Flexible passage indication function, high-brightness indicator light plus its humanized prompt function make the channel more distinctive;
l Normally open and normally closed modes are adjustable, and can be easily controlled by settings or external manual buttons;
l Automatic detection and reset function, after opening the gate, if no object is detected within the specified time (adjustable) to pass, the system will automatically cancel the right of passage;
l Automatic normally open when power is off to meet fire protection requirements;
l It can be connected with a variety of control devices and receive relay switch signals to work;
l Various traffic modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and freely pass in the opposite direction;
l Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.
3. Technical parameters
u Chassis size: 1200 length * 200 width * 1000 height (MM) / according to various styles
u Processing technology: bending, cutting, welding, polishing, grinding and other processes
u Channel net width: 650-900mm
u Machine weight: about 40Kg (single movement), about 60KG (double movement)
u Chassis material: standard 304 stainless steel frame structure
u Working environment: indoor or outdoor (with rainproof rack)
u Access voltage: AC220±10V, 50HZ
u Drive motor: DC brushless motor (30W/24V)
u Input interface: relay switch signal
Innovative Tong single-word gate has more unique advantages:
l Adopting brushless motor technology, longer life;
l Adopting ARM control technology and DFC technology, it has more powerful functions and better scalability;
l Faster speed, the switching speed can reach ≤0.5S;
l The sound is lower, reaching ≤50 decibels;
l The operation is smoother, that is, no shaking, no vibration, and no echo.

Top 10 brands of drop arm turnstile,Face recognition drop arm turnstile,Card swipe drop arm turnstile,QR code drop arm turnstile,Applications of drop arm turnstile,drop arm turnstile manufacturers,drop arm turnstile system solutions,drop arm turnstile repairs,drop arm turnstile maintenance,drop arm turnstile installation,drop arm turnstile cases,drop arm turnstile pictures,

Is a drop arm turnstile expensive?,How much does a drop arm turnstile cost?,drop arm turnstile agent,Fingerprint drop arm turnstile,drop arm turnstile access control system,drop arm turnstile for office buildings,drop arm turnstile parameters,drop arm turnstile for school,drop arm turnstile use precautions,drop arm turnstile brand,drop arm turnstile manufacturer,drop arm turnstile manufacturer,drop arm turnstile ticket inspection system,drop arm turnstile channel,drop arm turnstile for community,drop arm turnstile working principle,drop arm turnstile for scenic spots,drop arm turnstile for stations,drop arm turnstile for airports,Single-movement drop arm turnstile,Dual-movement drop arm turnstile,Outdoor drop arm turnstile,Indoor drop arm turnstile,Anti-collision drop arm turnstile,Waterproof drop arm turnstile,Pedestrian passage drop arm turnstile,Innovation pass drop arm turnstile,Brushless drop arm turnstile,Anti-collision drop arm turnstile,Fully automatic drop arm turnstile,Factory-specific drop arm turnstile

Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles 0
Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles 1
Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles 2
Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles 3

Brushless Motor Outdoor Drop Arm Security Gates Stainless Steel Turnstiles 4

Tags:

Security Entrance Systems

pedestrian turnstile gate

drop arm security gates

RELATED PRODUCTS

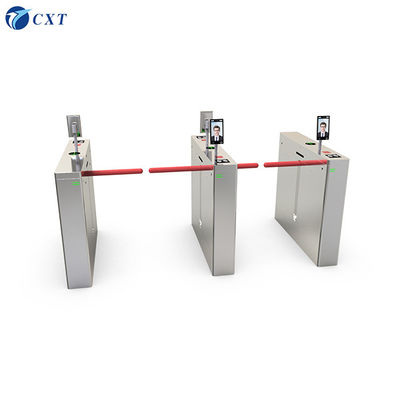

Automatic Drop Arm Turnstile For Community Stainless Steels 304
