shenchi123Global best-selling anti-climbing and anti-drilling fully automatic 1.8m face recognition brushless motor sliding gate 510Z
Place of Origin:
SHENZHEN
Brand Name:
CXT
Certification:
CE
Model Number:
CXT-PY510Z
Chat Now
Product Details
Material:
304 Stainless Steel,thickness Is No Less Than 1.3mm
Warranty:
1 Year,Motor 2 Years,12 Months,One Year,3 Year
Arm Length:
510mm,60~90cm,500(mm),55cm
Power Supply:
AC220V,AC220V/110V Optional,110~240 V(AC),50Hz,AC220±10%
Interface:
RS485,TCP/IP,Dry Contact,Switch Signal
Application:
Quality Inspection,Indoor/outdoor With Tent,Company,hotel,airport
Odm/oem:
Accepted
Motor:
DC Brushless Motor,30W/24V,Brusless / Brushed Optional
Payment & Shipping Terms
Minimum Order Quantity
1PS
Price
30-3000$
Packaging Details
Wooden box
Delivery Time
20day
Payment Terms
Western Union
Supply Ability
600PS
RELATED PRODUCTS
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX
Get Best Price
Smart Swing Arm Barriers Fully Automatic 304 Stainless Steel 510J
Get Best Price
Global best-selling anti-climbing and anti-drilling fully automatic 1.8m face recognition brushless motor sliding gate 510Z
Get Best Price
High Security Glass Swing Turnstile Access Control Multifunctional 510H
Get Best Price
CONTACT US
Chat Now
Product Description

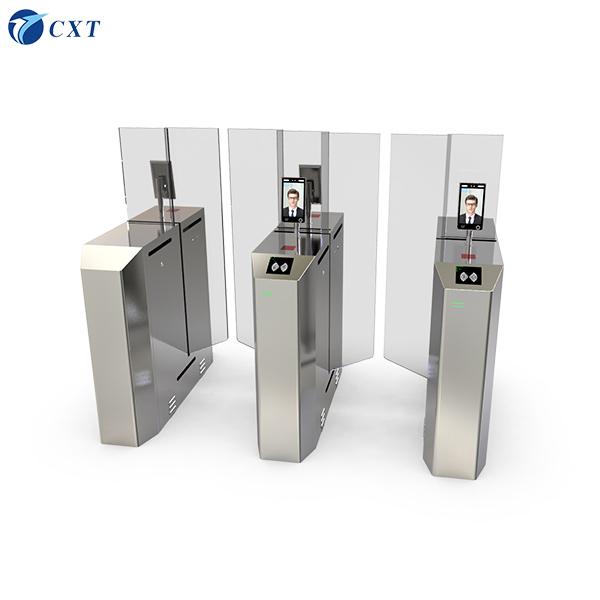

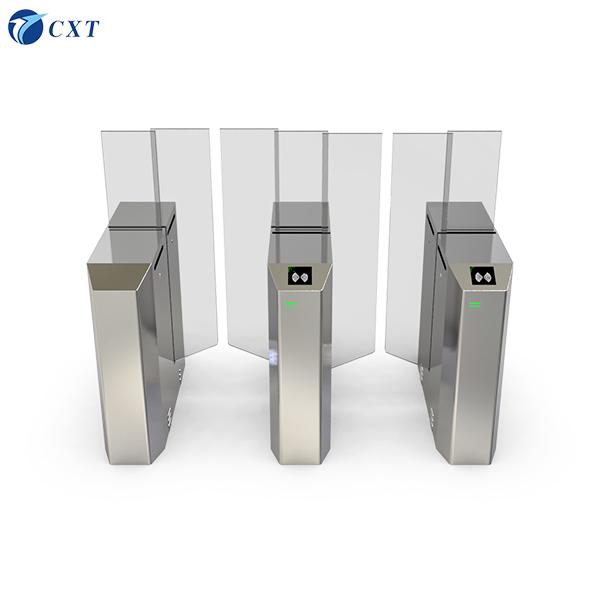

Global best-selling anti-climbing and anti-drilling fully automatic 1.8m face recognition brushless motor sliding gate 510Z
Sharp Angle Sliding Turnstile Core Features:
- High safety with 2.3-meter height
- All round personal security with double anti-pinch protection
- Intelligent & Advanced Passageway Security Concept
- Strong & Stable Control Core
- Arc-Shape Sliding Turnstile Technical Parameter
- Housing material: Stainless steel 304
- Housing processing work-craft: Adopt bend, cut, weld, polish and etc.

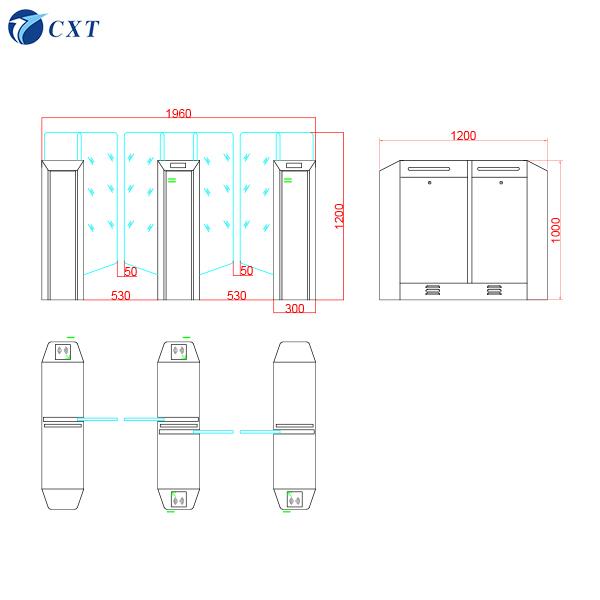

- Specification and size: 1400*300*1000mm (adjustable per order)
- Weight: per different models(about 60-90kg)
- Arm length: 235mm(adjustable per order)
- Lane width: 520mm(adjustable per order)
- Barrier height: 800-1800mm(adjustable per order)
- Flow rate: 30-40person/minute
- Voltage: AC220 ±10V / 50 ±10% HZ
- Drive motor: DC motor(50W24V)
- Input interface: Standard communicate signal
- Gate open and close gap: 0.5-1s
- Booting time: 3s
- Suitable temperature: -40℃ ～ 80℃.
- Suitable humility: 5％—— 95％
- Working environment: Indoor and outdoor,
- door access systems
- Fault detection,user-friendly maintenance and use
- Small button int the main control panel ,can be set state of equipment.
- Anti-Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)
- Scour protection function ,when the gate signal is not received, the stick is automatically locked
- The door synchronization are adjustable(for double off gates situation)
- With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permissions of the user.
- Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements
- Sound (light) alarm function, containing illegal intrusion alarm (reverse broke into the Gate); etc.
- Anti-pinch function (four pairs of infrared)
- The precise logical judgment, infrared reset function (4 or 6 pairs of infrared)
- The voice output,humane tips for correct password (optional))
Sharp Angle Sliding Turnstile Main Function:
- Alert via Sound and light when system breakdown etc.,
- Flexible code settings on turnstile control board and it has about dozens of types working mode for your selection.
- Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the gates will automatically stop or rebound, sending out alarm signal at the same time.
- Various alarm patterns, including unauthorized intrusion, reverse passing, anti-trailing, and overtime passing alarm etc.
- Impact resistant, without receiving the open signal, turnstile arm auto locks.
- Reverse passing, when somebody attempts to passing reversely, the arm quickly shuts at the same time and alert.
- Flexible access instruction function, high brightness light, and its humanized prompt function make the passageway more characteristic.
- Adjustable for modes of always open and always close can easily adjust via code-setting on the turnstile control board or external manual button controlling.
- Automatic detection and reset function: the access door systems will automatically cancel the access permissions when no objects passing is detected within the prescribed time (adjustable).
- The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
- Can be linked to the variety of external control equipment, receiving the signal for the turnstile.
- Uni-directional and bi-directional access control can be manual seting.
- Strong environment adapting ability, Turnstile can be working properly in harsh environments, with strong ego defense ability. Withstand with weak current, short circuit, humid, rain and snow weather, typhoon or even other environmental change.
