Global best-selling QR code face recognition brushless motor sliding gate 510

Product Details

Warranty:

1 Year,Motor 2 Years,12 Months,One Year,3 Year

Arm Length:

510mm,60~90cm,500(mm),55cm

Size:

1200*280*1000mm,420*330*980(MM),42*33*98cm,420L*W340*H980mm

Passing Speed:

40 Persons/Min.,30people/min,35 Person/min

Working Environment:

Indoor/Outdoor (with A Tent Over),-10-70 Degree,indoor / Outdoor,Indoor & Outdaoor

Interface:

RS485,TCP/IP,Dry Contact,Switch Signal

Payment & Shipping Terms

Minimum Order Quantity

1PS

Price

30-3000$

Packaging Details

Wooden box

Delivery Time

20day

Supply Ability

500PS

Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX

Get Best Price

Video

Smart Swing Arm Barriers Fully Automatic 304 Stainless Steel 510J

Get Best Price

Video

Global best-selling anti-climbing and anti-drilling fully automatic 1.8m face recognition brushless motor sliding gate 510Z

Get Best Price

Video

High Security Glass Swing Turnstile Access Control Multifunctional 510H

Get Best Price

Chat Now

Product Description

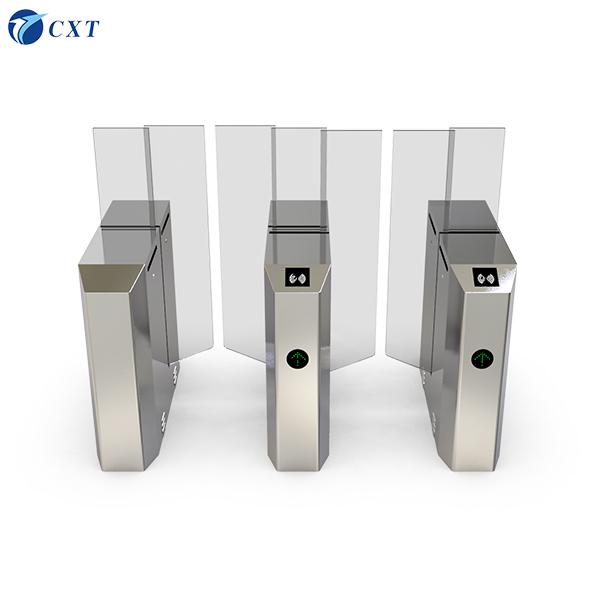

Global best-selling QR code face recognition brushless motor sliding gate 510

Global best-selling QR code face recognition brushless motor sliding gate 510 2

Oval Shape Sliding Turnstile Description:

High-quality DC brushless motor is configured and advanced servo control system is carried to truly achieve precise control, stable performance and maintenance-free.
Lossless mechanism structure based on German technology is adopted to ensure a long lifespan. The best sliding gates for sale now!

Oval Shape Sliding Turnstile Core Features:

High safety with 1.8-meter height
All round personal security with double anti-pinch protection
Intelligent & Advanced Passageway Security Concept
Strong & Stable Control Core

Fault detection,user-friendly maintenance and use
Small button int the main control panel ,can be set state of equipment.
Anti-Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)
Scour protection function ,when the gate signal is not received, the stick is automatically locked
The door synchronization are adjustable(for double off gates situation)
With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permissions of the user.
Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements
Sound (light) alarm function, containing illegal intrusion alarm (reverse broke into the Gate); etc.
Anti-pinch function (four pairs of infrared)
The precise logical judgment, infrared reset function (4 or 6 pairs of infrared)
The voice output,humane tips for correct password (optional))

Oval Shape Sliding Turnstile Main Function:

Alert via Sound and light when system breakdown etc.,
Flexible code settings on turnstile control board and it has about dozens of types working mode for your selection.
Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the gates will automatically stop or rebound, sending out alarm signal at the same time.
Various alarm patterns, including unauthorized intrusion, reverse passing, anti-trailing, and overtime passing alarm etc.
Impact resistant, without receiving the open signal, turnstile arm auto locks.
Reverse passing, when somebody attempts to passing reversely, the arm quickly shuts at the same time and alert.
Flexible access instruction function, high brightness light, and its humanized prompt function make the passageway more characteristic.
Adjustable for modes of always open and always close can easily adjust via code-setting on the turnstile control board or external manual button controlling.
Automatic detection and reset function: System will automatically cancel the access permissions when no objects passing is detected within the prescribed time (adjustable).
The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
Can be linked to the variety of external control equipment, receiving the signal for the turnstile.
Uni-directional and bi-directional access control can be manual seting.
Strong environment adapting ability, Turnstile can be working properly in harsh environments, with strong ego defense ability. Withstand with weak current, short circuit, humid, rain and snow weather, typhoon or even other environmental change.

Sliding Turnstile Technical Parameter

Structure	frame structure/standard stainless steel shell
Production	full CNC laser cutting machine production

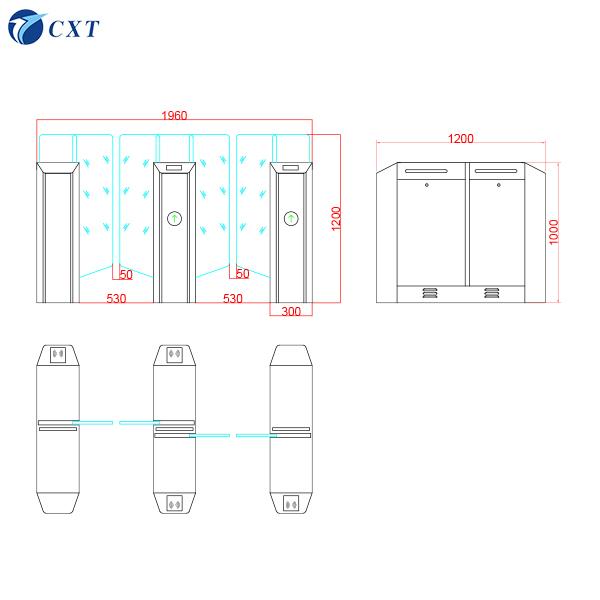

Dimension	16003201000mm
Maximum channel width	600mm
Drive motor	Brush-less DC motor (24V)
Passing Direction	One way/two way optional
Power on state require time	3 seconds
Failure automatically reset time	10 seconds
Passing speed	<=40 persons/min
Special Design	OEM is welcome,to meet your needs as best as we can
Warranty	12 months after shipped,the destruction of the non-human factos will be covered.
Technical Service	Product related issues,we will provide comprehensive after-sales guidance and help.
Operating Temperature	-15°C ~ 50°C, <=95%
Package	Paper Carton/Wooden Box
Minimum order quantity	1 set
Lead time	3-4 working days for sample

Global best-selling QR code face recognition brushless motor sliding gate 510 3

Global best-selling QR code face recognition brushless motor sliding gate 510 4
