shenchi123High Security Glass Swing Turnstile Access Control Multifunctional 510H
High Security Glass Swing Turnstile
High Security swing turnstile gate
Multifunctional Glass Swing Turnstile
Place of Origin:
shenzhen
Brand Name:
cxt
Certification:
Single label product appearance patent
Model Number:
CXT-PY510H
Chat Now
Product Details
Weight:
About 70Kg
In And Out Direction:
One-way Or Two-way
Working Voltage:
AC220 ±10 V/50 HZ
Drive Motor:
DC Motor (24V)
Input Interface:
Dry Contact Signal
Passing Speed:
About 30 People/minute
Highlight:
High Security Glass Swing Turnstile
,
High Security swing turnstile gate
,
Multifunctional Glass Swing Turnstile
Payment & Shipping Terms
Minimum Order Quantity
1
Price
90~3500USD
Packaging Details
Cartons and wooden boxes
Delivery Time
20 working days
Payment Terms
Public Account
Supply Ability
500ps
RELATED PRODUCTS
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX
Get Best Price
Smart Swing Arm Barriers Fully Automatic 304 Stainless Steel 510J
Get Best Price
Global best-selling anti-climbing and anti-drilling fully automatic 1.8m face recognition brushless motor sliding gate 510Z
Get Best Price
High Security Glass Swing Turnstile Access Control Multifunctional 510H
Get Best Price
CONTACT US
Chat Now
Product Description
Brushless motor fully automatic customs gymnasium amusement park app ticket checking Glass Sliding Turnstile CXT-PY510H

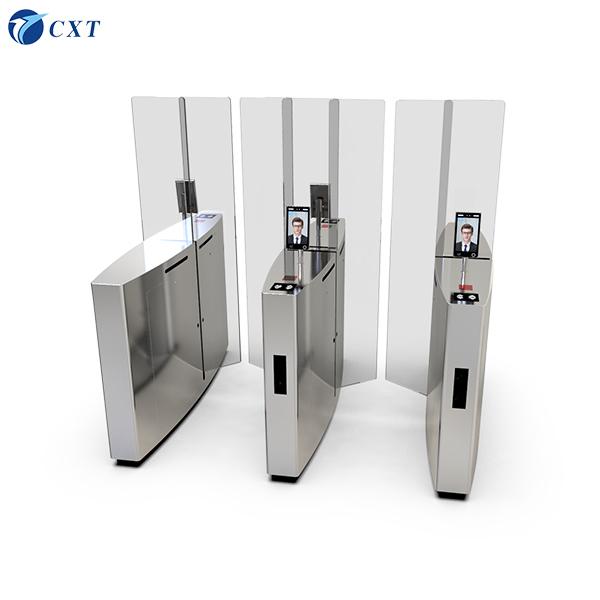

Glass Sliding Turnstile CXT-PY510H
Model: CXT-PY510H
Specifications: 1400*300*1000mm
Pole length: 250mm
Process: Produced by bending, cutting, welding, polishing, grinding and other processes
Material: National standard 304 stainless steel (201 stainless steel, iron paint can be customized)
Top 10 brands of Glass Sliding Turnstiles,Facial recognition Glass Sliding Turnstiles,Card swipe Glass Sliding Turnstiles,QR code Glass Sliding Turnstiles,Applications of Glass Sliding Turnstiles,
Glass Sliding Turnstile manufacturers,Glass Sliding Turnstile system solutions,Repair of Glass Sliding Turnstiles,Maintenance of Glass Sliding Turnstiles,Installation of Glass Sliding Turnstiles,
Glass Sliding Turnstile cases,Glass Sliding Turnstile pictures,Is a Glass Sliding Turnstile expensive?,
How much does a Glass Sliding Turnstile cost?,Glass Sliding Turnstile agent,Fingerprint Glass Sliding Turnstile,Glass Sliding Turnstile access control system,Office building special Glass Sliding Turnstile,Glass Sliding Turnstile parameters,School special Glass Sliding Turnstile,Precautions for using Glass Sliding Turnstile,Glass Sliding Turnstile brand,Glass Sliding Turnstile manufacturer,Glass Sliding Turnstile manufacturer,Glass Sliding Turnstile ticket checking system,
Glass Sliding Turnstile channel,Residential special Glass Sliding Turnstile,Glass Sliding Turnstile working principle,Scenic area special Glass Sliding Turnstile,special Glass Sliding Turnstile,Airport special Glass Sliding Turnstile,Single movement Glass Sliding Turnstile,Dual movement Glass Sliding Turnstile,Outdoor Glass Sliding Turnstile,Indoor Glass Sliding Turnstile,Anti-collision Glass Sliding Turnstile,Anti-level Glass Sliding Turnstile,Pedestrian passage Glass Sliding Turnstile,Innovation Glass Sliding Turnstile,Brushless Glass Sliding Turnstile,Anti-collision Glass Sliding Turnstile,Fully automatic Glass Sliding Turnstile,Factory special Glass Sliding Turnstile
Functions and features of intelligent sliding gates
2.1 Functions and features of standard products:
1) It has fault self-detection and logic judgment functions, which is convenient for users to maintain and debug functions;
2) Flexible dial code settings for various performances of the equipment, up to dozens of types;
3) Intelligent anti-pinch function, when there is a person or obstacle at the reset position of the barrier arm, it will automatically stop or rebound and send out an alarm signal;
4) Multiple mode alarm function, including illegal intrusion, anti-intrusion, tailgating, and passage timeout alarms;
5) Anti-collision function, when no gate opening signal is received, the barrier arm will automatically lock;
6) Reverse intrusion closing alarm function, when someone enters from the reverse direction after swiping the card forward, the barrier wing will quickly close and send out an alarm;
7) Flexible passage indication function, high-brightness indicator light plus its humanized prompt function, making the channel more distinctive;
8) Normally open and normally closed modes are adjustable, and can be easily controlled by dialing or external manual buttons;
9) Automatic detection and reset function, after opening the gate, if no object is detected within the specified time (adjustable), the system will automatically cancel the passage authority;
10) Automatic normally open when power is off to meet fire protection requirements;
11) It can be connected with a variety of control devices and receive relay switch signals to work;
12) Various traffic modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and freely pass in the opposite direction;
13) Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.
3. Main structure and configuration of sliding gate (single channel)
2 standard stainless steel chassis, 2 plexiglass arms, 2 industrial-grade main control boards, 2 transformers, 2 motors, 2 sets of movement and transmission parts, 4-6 pairs of infrared beams, 4 high-brightness warning lights.
4. Standard technical parameters of sliding gate and sliding door
◇ Chassis material: National standard (No. 304) stainless steel, thickness 1.2-1.5mm
◇ Chassis size (standard): 1400 length * 300 width * 1000 height (MM)
◇ Processing technology: Produced by bending, cutting, welding, polishing, grinding and other processes
◇ Channel net width: 500-550mm
◇ Door wing height: ≤1800mm
◇ Door wing material: high-quality acrylic (thickness 12-18mm) or tempered glass (thickness ≤12mm)
◇ Weight: about 70Kg
◇ Entry and exit direction: one-way or two-way
◇ Working voltage: AC220 ±10 V/50 HZ
◇ Drive motor: DC motor (24V)
◇ Input interface: Dry contact signal
◇ Passing speed: about 30 people/minute
◇ Gate opening and closing time: 0.5-2 seconds adjustable
◇Time required to enter the traffic state after power-on: 3 seconds
◇Working environment: indoors, outdoors (it is recommended to build a shed)
◇Temperature: (industrial standard) -40℃——80℃
◇Relative humidity: ≤95%, no condensation
Purpose of sliding gates:
Used for pedestrian passages and automatic ticket vending and inspection management, such as airports, subways, libraries, office buildings, theaters, office buildings, factories, scenic spots, stations, leisure and entertainment venues, etc.
The sliding gate can realize simple dissuasion-level access control for public passages. The mechanical part of the equipment contains an emergency control device. When the power is off, the baffle automatically retracts to form a fire passage to ensure smooth passage; when the power is on, the baffle automatically resets. It has a variety of different configurations and can be applied to all building environments, and can solve all control problems of pedestrian entrances and exits.
