Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX

Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX

Anti Collision Access Control Turnstile Gate

Anti Collision Slim Speed Gate Turnstile

RFID Access Control Turnstile Gate

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Chat Now

Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX

Product Details

Temperature:

-10℃ – 50℃

Access Control:

RFID,fingerprint,barcode,esd,token

Head Thickness:

1.5mm (can Be Customized)

Passing Speed:

30-40 People/min

Operating Humidity:

≤95% No Condensation

Material:

Stainless Steels 304

Highlight:

Anti Collision Access Control Turnstile Gate

Anti Collision Slim Speed Gate Turnstile

RFID Access Control Turnstile Gate

Payment & Shipping Terms

Minimum Order Quantity

1

Price

90~3500USD

Packaging Details

Cartons and wooden boxes

Delivery Time

20 working days

Payment Terms

Public Account

Supply Ability

500ps

RELATED PRODUCTS

Video

Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX

Get Best Price

Video

Smart Swing Arm Barriers Fully Automatic 304 Stainless Steel 510J

Get Best Price

Video

Global best-selling anti-climbing and anti-drilling fully automatic 1.8m face recognition brushless motor sliding gate 510Z

Get Best Price

Video

High Security Glass Swing Turnstile Access Control Multifunctional 510H

Get Best Price

CONTACT US

Chat Now

Product Description

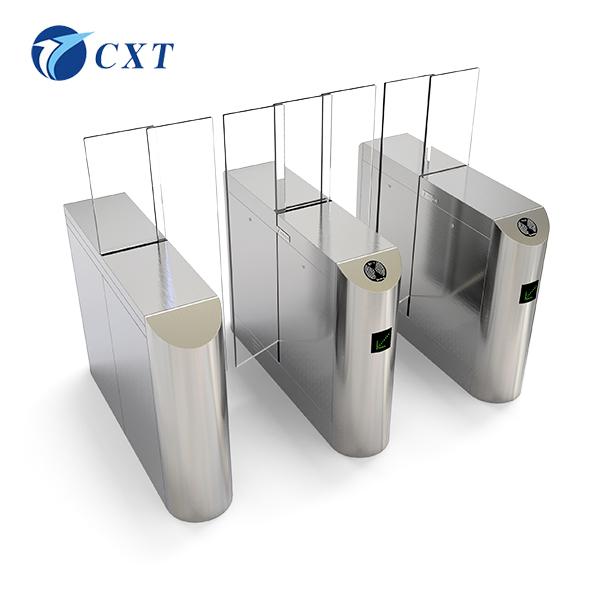

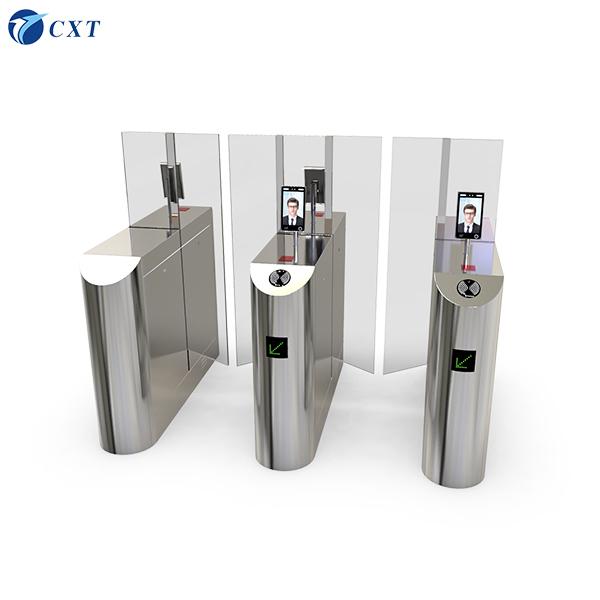

Glass Sliding Turnstile CXT-PY510YX

ModelCXT-PY510YX
Specifications1400*300*1000mm
Pole length250mm
ProcessProduced by bending, cutting, welding, polishing, grinding and other processes
MaterialNational standard 304 stainless steel (201 stainless steel, iron paint can be customized)
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX 0
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX 1
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX 2

Shenzhen Chuangxintong Development Technology Co., Ltd. is a manufacturer of production and R&D gate machines that integrates R&D, manufacturing, system integration and services. We are a high-quality supplier of pedestrian gate products such as intelligent license plate recognition systems, card swiping systems, Bluetooth systems, channel gates, automatic semi-three-roller gates/fully automatic three-roller gates/intelligent barriers/wing gates/intelligent swing gates/swing gates speed gates/intelligent sliding gates/intelligent turnstiles, etc. We integrate scenic area electronic ticket systems, access control and attendance systems, construction site personnel management systems, station diversion and guidance systems, workshop anti-static systems, fingerprint attendance systems, palm prints, face recognition, and other series of products. We are a high-quality supplier of pedestrian gate products such as intelligent license plate recognition systems, card swiping systems, Bluetooth systems, parking lot gates, high-speed gates, automatic semi-three-roller gates/fully automatic three-roller gates/intelligent barriers/wing gates/intelligent swing gates/swing gates speed gates/intelligent sliding gates/intelligent turnstiles, etc. Integrated scenic spot electronic ticket system, access control attendance system, construction site personnel management system, station diversion and guidance system, workshop anti-static system, fingerprint attendance system, palm print, face recognition, and other series of products.

Introduction to Chuangxintong sliding gate equipment

Intelligent sliding gate (full-height wing gate) is a high-tech product mainly for intelligent management of personnel channels. Compared with ordinary wing gates, it has anti-climbing and anti-drilling effects and is of higher grade. This product adopts industrial-grade circuit control system and humanized and scientific mechanical transmission design. This product has stable performance, complete functions, humanized design and high grade. It is mainly used in high-end and crowded places such as subways, docks, clubs, smart buildings, villa communities, hotel lobbies, etc.

This equipment is compatible with various access control and identification system equipment. Induction card access control, biometric access control, electrostatic testing, etc. can realize intelligent channel control and management through simple docking with the sliding gate.

2. Functions and features of sliding gates
2.1 Functions and features of standard products:
1) It has fault self-detection and logic judgment functions, which is convenient for users to maintain and debug functions;
2) Flexible dial code settings for various performances of the equipment, up to dozens of types;
3) Intelligent anti-pinch function, when there is a person or obstacle at the reset position of the barrier arm, it will automatically stop or rebound and send out an alarm signal;
4) Multiple mode alarm function, including illegal intrusion, anti-intrusion, tailgating, and passage timeout alarms;
5) Anti-collision function, when no gate opening signal is received, the barrier arm will automatically lock;
6) Reverse intrusion closing alarm function, when someone enters from the reverse direction after swiping the card forward, the barrier wing will quickly close and send out an alarm;
7) Flexible passage indication function, high-brightness indicator light plus its humanized prompt function, making the channel more distinctive;
8) Normally open and normally closed modes are adjustable, and can be easily controlled by dialing or external manual buttons;
9) Automatic detection and reset function, after opening the gate, if no object is detected within the specified time (adjustable), the system will automatically cancel the passage authority;
10) Automatic normally open when power is off to meet fire protection requirements;
11) It can be connected with a variety of control devices and receive relay switch signals to work;
12) Various traffic modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and freely pass in the opposite direction;
13) Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.

3. Main structure and configuration of sliding gate (single channel)
2 standard stainless steel chassis, 2 plexiglass arms, 2 industrial-grade main control boards, 2 transformers, 2 motors, 2 sets of movement and transmission parts, 4-6 pairs of infrared beams, 4 high-brightness warning lights
4. Standard technical parameters
◇ Chassis material: National standard (No. 304) stainless steel, thickness 1.2-1.5mm

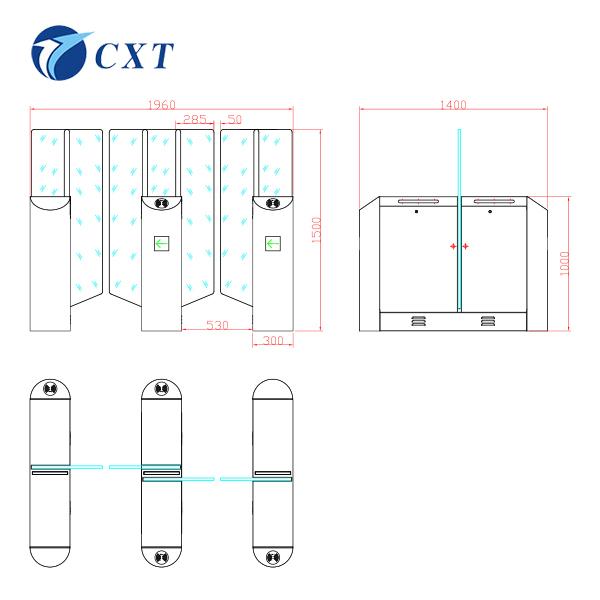

◇ Chassis size (standard): 1400 length * 300 width * 1000 height (MM)
◇ Processing technology: produced by bending, cutting, welding, polishing, grinding and other processes
◇ Channel net width: 500-550mm
◇ Door wing height: ≤1800mm
◇ Door wing material: high-quality acrylic (thickness 12-18mm) or tempered glass (thickness ≤12mm)
◇ Weight: about 70Kg
◇ Entry and exit direction: unidirectional or bidirectional
◇ Working voltage: AC220 ±10 V/50 HZ
◇Drive motor: DC motor (24V)
◇Input interface: Dry contact signal
◇Passing speed: about 30 people/minute
◇Gate opening and closing time: 0.5-2 seconds adjustable
◇Time required to enter the passing state after power-on: 3 seconds
◇Working environment: indoors, outdoors (it is recommended to build a shed)
◇Temperature: (industrial standard) -40℃——80℃
◇Relative humidity: ≤95%, no condensation

Innovation Pass adheres to the business philosophy of “surviving by technology and establishing a foothold by integrity”. With years of exploration and accumulation of pedestrian channel management system and intelligent channel gate system, with the latest design concept, it breaks the traditional pattern of the industry, realizes the intelligence of the channel gate system, integrates intelligent technology into the public’s automated life applications, and provides users with high-value products and services.

Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX 3
Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX 4

Intelligent Access Control Turnstile Gate RFID Automatic Anti Collision 510YX 5

Top 10 brands of Glass Sliding Turnstiles,Facial recognition Glass Sliding Turnstiles,Card swipe Glass Sliding Turnstiles,QR code Glass Sliding Turnstiles,Applications of Glass Sliding Turnstiles,

Glass Sliding Turnstile manufacturers,Glass Sliding Turnstile system solutions,Repair of Glass Sliding Turnstiles,Maintenance of Glass Sliding Turnstiles,Installation of Glass Sliding Turnstiles,

Glass Sliding Turnstile cases,Glass Sliding Turnstile pictures,Is a Glass Sliding Turnstile expensive?,

How much does a Glass Sliding Turnstile cost?,Glass Sliding Turnstile agent,Fingerprint Glass Sliding Turnstile,Glass Sliding Turnstile access control system,Office building special Glass Sliding Turnstile,Glass Sliding Turnstile parameters,School special Glass Sliding Turnstile,Precautions for using Glass Sliding Turnstile,Glass Sliding Turnstile brand,Glass Sliding Turnstile manufacturer,Glass Sliding Turnstile manufacturer,Glass Sliding Turnstile ticket checking system,

Glass Sliding Turnstile channel,Residential special Glass Sliding Turnstile,Glass Sliding Turnstile working principle,Scenic area special Glass Sliding Turnstile,special Glass Sliding Turnstile,Airport special Glass Sliding Turnstile,Single movement Glass Sliding Turnstile,Dual movement Glass Sliding Turnstile,Outdoor Glass Sliding Turnstile,Indoor Glass Sliding Turnstile,Anti-collision Glass Sliding Turnstile,Anti-level Glass Sliding Turnstile,Pedestrian passage Glass Sliding Turnstile,Innovation Glass Sliding Turnstile,Brushless Glass Sliding Turnstile,Anti-collision Glass Sliding Turnstile,Fully automatic Glass Sliding Turnstile,Factory special Glass Sliding Turnstile

FAQ


1. How about the quality of your products?
We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
2. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
3. How long is your warranty period?
 One-year guarantee & Life-time technology support.
